Carlo Gavazzi at LED Controls

Carlo Gavazzi is a global manufacturer of industrial and building automation components. The portfolio includes inductive and capacitive sensors, photoelectric sensors, ultrasonic sensors, solid state relays, soft starters, timers, monitoring relays, energy meters, power transducers, Dupline fieldbus modules, safety devices and accessories.

We are an established UK distributor with genuine stock, fast delivery and application led advice. Our team helps you specify the correct Carlo Gavazzi part, provides datasheets and wiring notes, and supports integration with PLCs, HMIs and drives.

Yes. We stock popular Carlo Gavazzi sensors, relays and energy products in our UK warehouse for rapid dispatch. Non-stock items are sourced quickly through our supply chain.

Many lines are available on a next working day service across the UK. Delivery options and cut off times are shown at checkout or can be confirmed by our sales team.

Yes. We supply official datasheets, installation manuals and wiring guidance for Carlo Gavazzi products. If you need a file for a specific SKU, share the code and we will send the correct documentation.

Absolutely. Send the legacy part code and application details. We will recommend a like for like Carlo Gavazzi replacement or a suitable modern alternative with the same or improved specification.

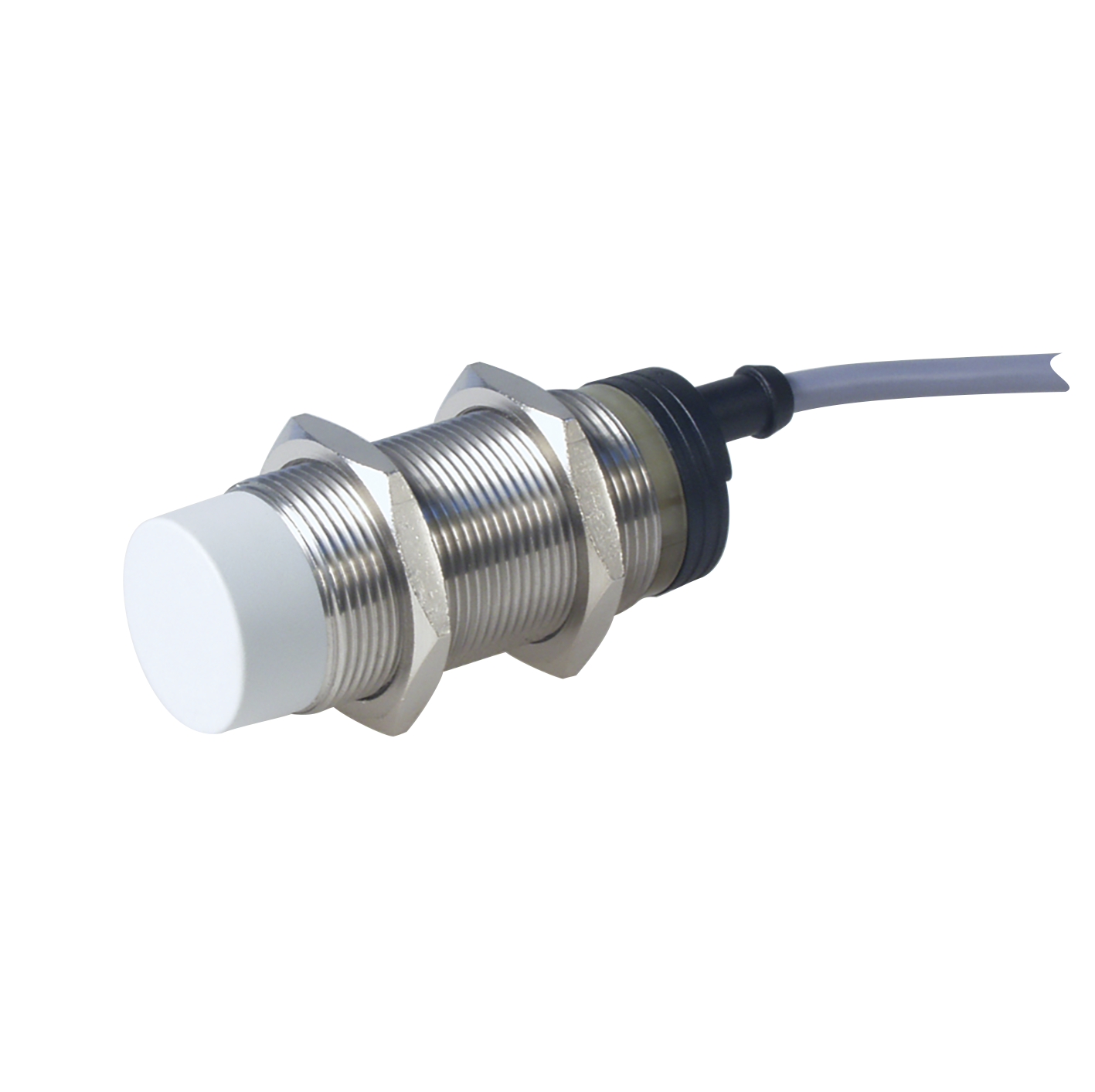

We supply inductive proximity sensors, capacitive sensors, magnetic sensors, photoelectric sensors including through beam, retro reflective and diffuse, fibre optic amplifiers, ultrasonic distance sensors and IO Link ready variants.

Select by thread size such as M8, M12, M18, M30, sensing distance, flush or non flush mounting, output type NPN or PNP, NO or NC switching, and connection type cable or M12 plug. Tell us your target material and space constraints and we will suggest the best model.

Use capacitive sensors for detecting non-metallic materials such as plastic, glass, wood or liquids, for example level detection through tank walls or presence sensing of non-ferrous parts.

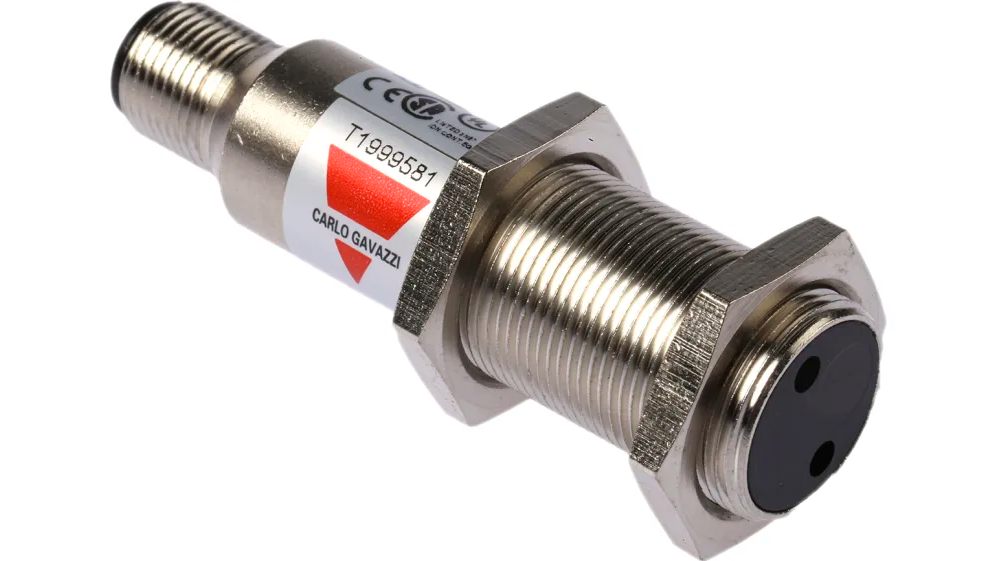

Through beam offers the longest range and best immunity, retro reflective suits reflective targets with a reflector, and diffuse is compact for short range detection. Fibre optic amplifiers are ideal for small parts or high temperature zones. We can help match the mode to your application.

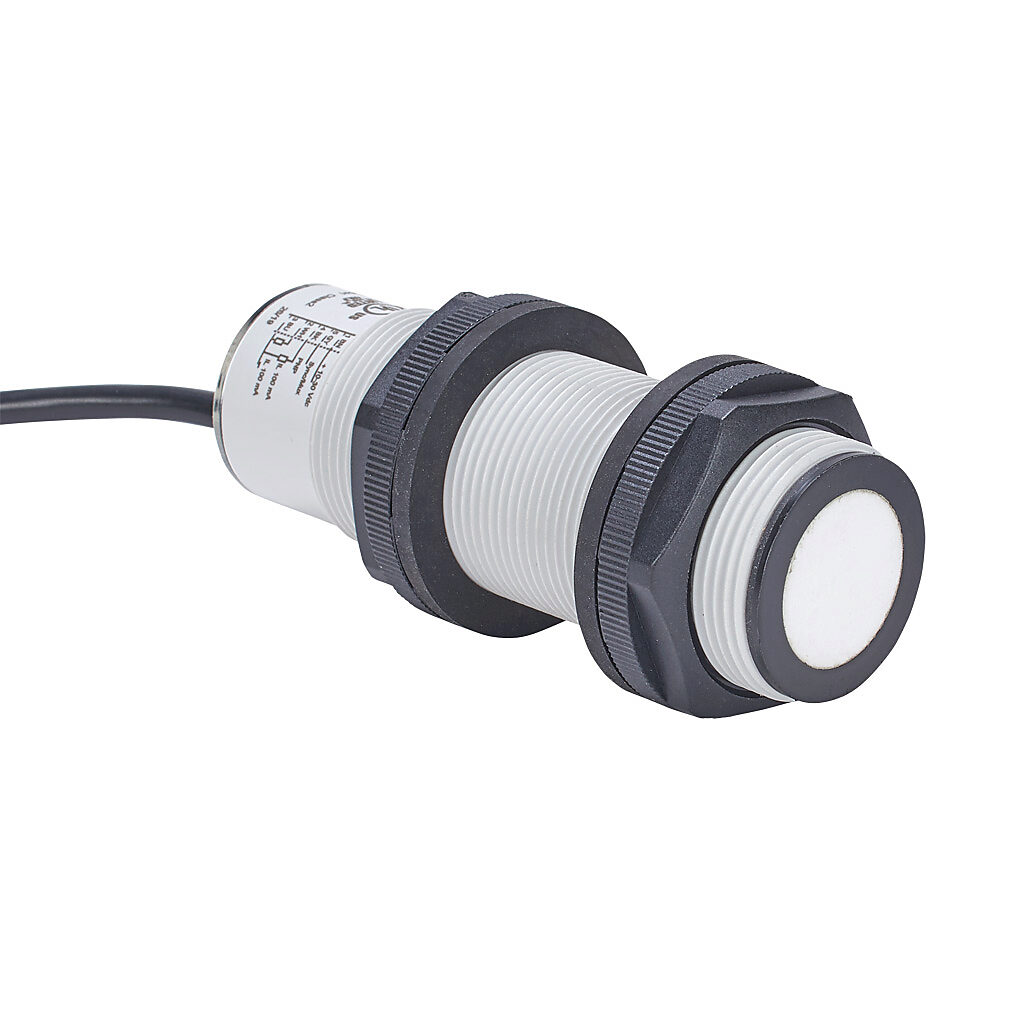

Yes. Ultrasonic sensors provide distance measurement independent of colour or transparency. Choose analogue 4 to 20 mA or 0 to 10 V outputs or switching outputs, with M12 and M30 housings available.

Many models are IO Link enabled for parameterisation and diagnostics. We can help you select IO Link masters and cables to integrate with your PLC or SCADA.

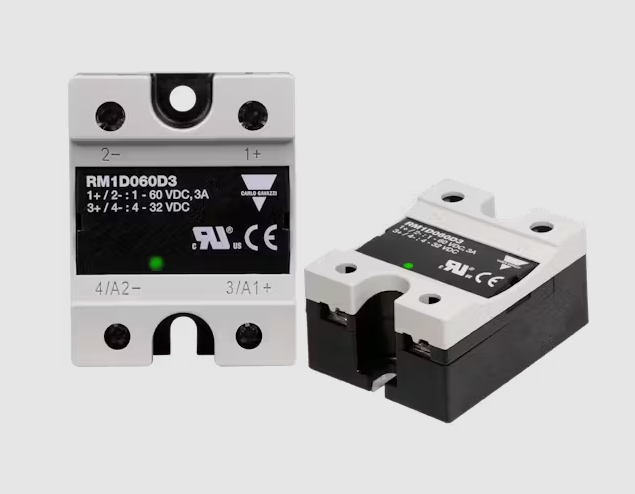

We stock panel mount, DIN rail and PCB solid state relays for AC and DC loads, including zero-cross and instant-on types, single phase and three phase versions, and heat sinks and accessories.

Yes. Soft starters reduce inrush current and mechanical stress on motors. Provide motor power, supply voltage and application details such as pump or conveyor and we will size the correct unit.

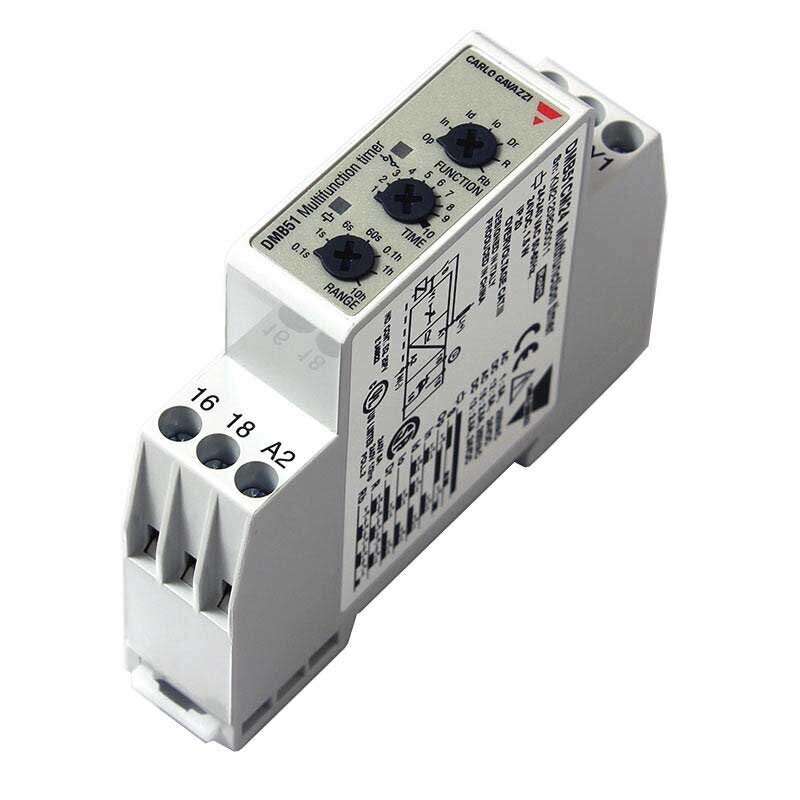

Carlo Gavazzi timers cover single and multifunction timing with wide supply ranges. Monitoring relays include phase sequence, phase loss, undervoltage, overvoltage, current, frequency and temperature monitoring.

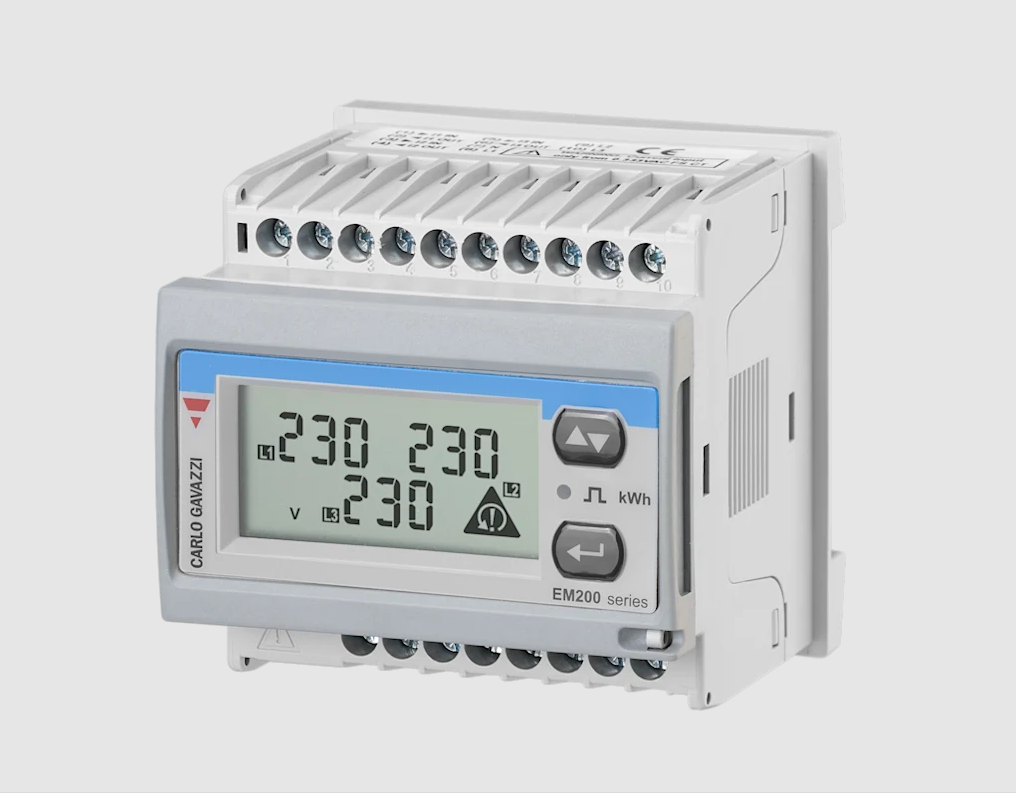

We supply single and three-phase energy meters with pulse and Modbus outputs, panel or DIN-rail mounting, plus multifunction transducers for power, power factor and harmonics. Current transformers, Rogowski coils and communication modules are also available.

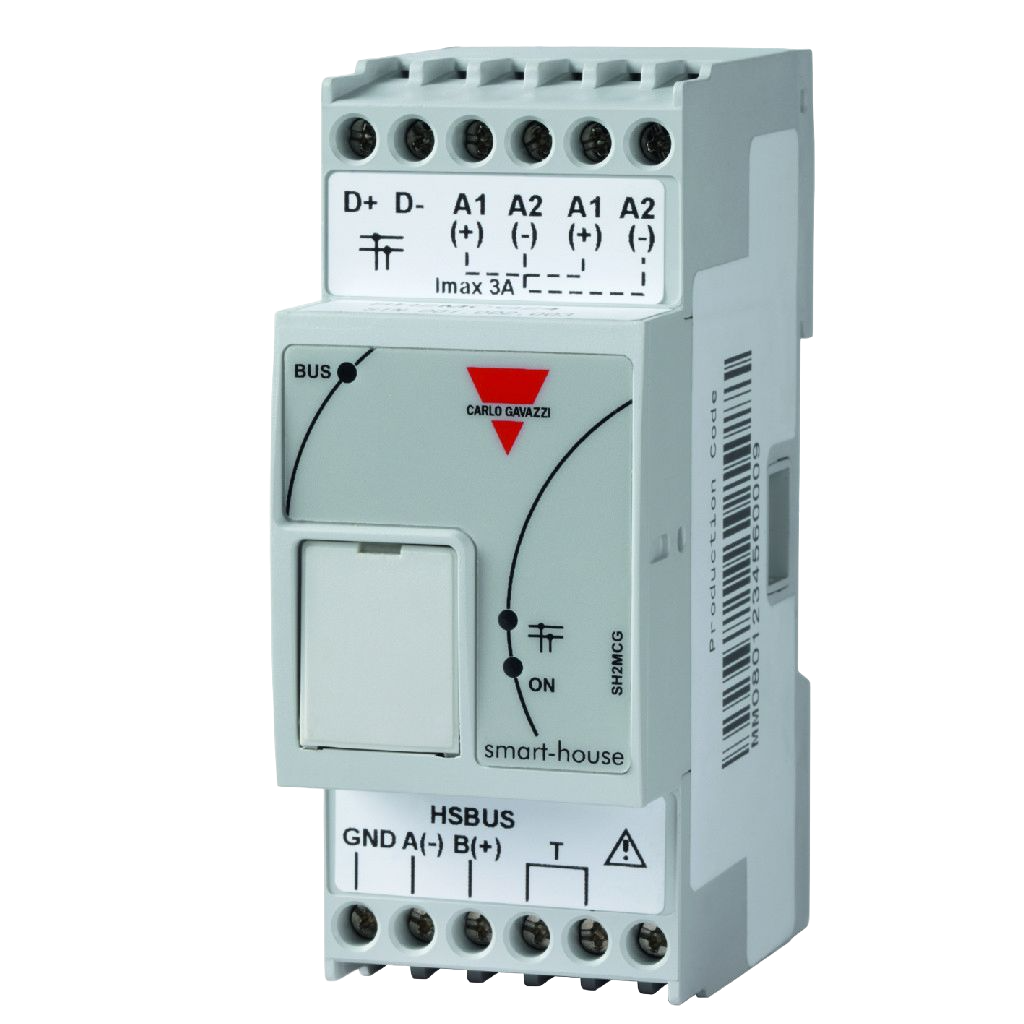

Dupline is a flexible fieldbus system for building and industrial automation. We supply Dupline generators, gateways, I/O modules, room devices and sensors, and can advise on topology, addressing and integration.

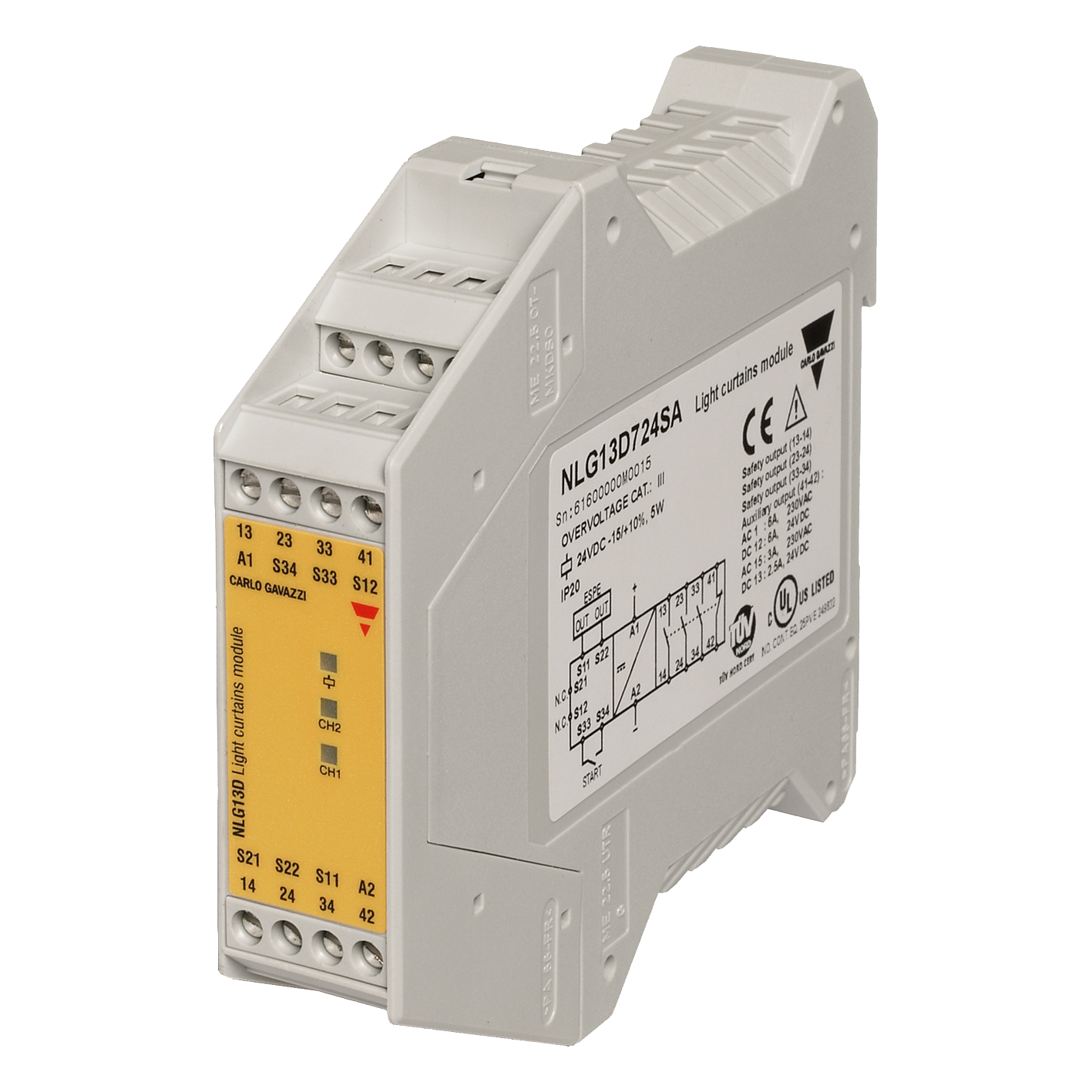

Yes. We supply safety relays, two-hand control modules, safety magnetic sensors and accessories. For light curtains and complex safety systems we can support selection and wiring best practice.

Most industrial sensors are IP65 to IP67, with selected models IP68 or IP69K for washdown. Stainless steel and ATEX options are available on specific series.

Certain sensors and accessories are available with ATEX certification for hazardous areas. Share your zone, gas or dust group, and temperature class requirements and we will confirm suitable parts.

Yes. Products offer standard signals such as NPN, PNP, relay, 0 to 10 V and 4 to 20 mA. Communication options include Modbus, BACnet, Ethernet and IO Link. We can assist with wiring to Siemens, Allen-Bradley, Omron and other PLC brands.

Typical supply ranges include 10 to 30 V DC for sensors and 24, 115 or 230 V AC for amplifiers, relays and timers. Always confirm the exact rating on the datasheet for the chosen SKU.

Meters are factory calibrated. Accuracy depends on correct CT ratio, wiring and configuration. We can advise on commissioning steps and verification.

Choose CTs based on primary current, secondary output 1 A, 5 A or 333 mV, window size and accuracy. For retrofit use split-core or Rogowski coils. Tell us your mains details and we will recommend a matched set.

Most panel-mount SSRs require an appropriate heat sink sized for load current, ambient temperature and mounting orientation. We can calculate and supply the correct heat sink and thermal pad.

Carlo Gavazzi provides a manufacturer warranty against defects. Warranty length varies by product family. Contact us with the SKU for details and RMA support.

We offer a straightforward returns process for unopened, resaleable items within our returns window. Custom or factory configured items may be excluded. Speak to our team for an RMA number.

Yes. Share your forecast or bill of materials and we will quote contract pricing with scheduled deliveries to support your build plan.

We can often arrange evaluation units or short-lead samples for qualifying projects. Talk to us about your application and timelines.

Yes. We can supply M8 and M12 cordsets, custom lead lengths and panel accessories to suit your installation, including right-angle and shielded options.

Stainless steel sensors and IP69K variants are available for hygienic and washdown environments. We can advise on chemical resistance and mounting hardware.

Yes. We can provide CE, UKCA and other compliance documents for Carlo Gavazzi products upon request.

Our engineers support product selection, wiring, parameter setup, fault finding and lifecycle replacements. We stay involved until your equipment is operating as expected.

Lead times vary by family and configuration but many lines are supplied within a few working days subject to factory availability. We will confirm a delivery date at order placement.

Trade accounts are available subject to approval. Contact our accounts team for an application form and credit terms.

Yes. Energy meters, power transducers and smart sensors help monitor consumption, optimise processes and reduce waste. We can recommend a measurement and verification toolkit for your site.

Yes. Tell us what you need to detect, measure or control, including distances, speeds, temperatures, voltages and the environment. We will propose a Carlo Gavazzi solution and provide a quote.
