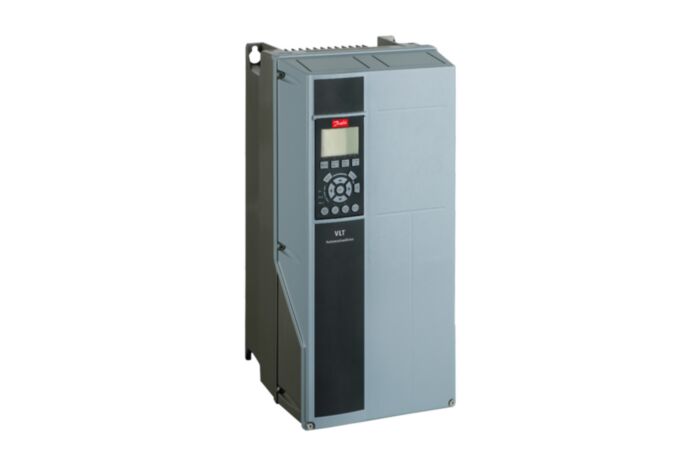

131F0863 Danfoss VLT AQUA Drive FC 200 3.0 KW / 4.0 HP, 380 - 480 VAC, IP55

MPN: 131F0863

Alt. SKU: FC-202P3K0T4E55H3XGXXXXSXXXXAXBXCXXXXDX

Special Price £1,054.80 £879.00 Regular Price £1,406.40

Please contact us for a delivery time
Call us now on 01706 242050

Need It Today?

Speak To Our Team

Speak to our experienced team to discuss options for getting your order to you today.

or

Call us now on: 01706 242050
  • Please ensure the items you would like are in stock
  • Please speak to our team before placing an order
  • Additional charges will apply
  • We cannot guarantee the availability of a courier

Found It Cheaper?

Please complete the form below or call us now on 01706 242050

Ask A Question

Free delivery on orders over £200
Danfoss variable speed drive 3.0 KW / 4.0 HP, 380 - 480 VAC, IP55 / Type 12, RFI Class A1/B (cable len)(C1), No brake chopper Part numbers.. 131F0863, FC-202P3K0T4E55H3XGXXXXSXXXXAXBXCXXXXDX Three Phase in/Three Phase out

This unit is designed for water and wastewater applications and has a variety of powerful features, with add-ons which can enhance performance. These drives are suited to new or retrofit projects.

Adding motor control to pumps and blowers used for water and wastewater treatment means it's easier to handle variable workloads. This drive provides between 10% and 30% savings in the first year alone, when compared to traditional drives, as it offers low maintenance costs and energy consumption.

The quick and user-friendly setup of water and pump settings reduces installation time ensuring a fast route to maximum energy efficiency and motor control.


Supply voltages and power range

1 x 200-240 V...1.1-22 kW

1 x 380-480 V...7.5-37 kW

3 x 200-240 V...0.25-45 kW

3 x 380-480 V...0.37 kW – 1 MW

3 x 525-600 V...0.75-90 kW

3 x 525-690 V...45 kW – 1.4 MW


Low harmonic drive

3 x 380-480 V...132-710 kW

12-pulse drive

3 x 380-690...250-1400 kW


Features and benefits

  • Assets are protected thanks to specially designed software that prevents, for example, water hammering
  • Energy efficiency is maximized as a result of the drives control algorithms and design which focus on reducing heat loss
  • High energy savings related to air conditioning are ensured due to the unique back-channel-cooling concept that transfers 90% of heat away from the room
  • Electromagnetic interference and harmonic distortion are reduced thanks to the built-in, scalable RFI filter and integrated DC link chokes
  • Perfect system integration and adaptation to the application are possible due to freely programmable warnings and alerts
  • 3–8% energy savings are achieved as a result of Automatic Energy Optimization


Applications

Centrifugal pumps and blowers, positive displacement blowers.


PC tools

VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
Danfoss ecoSmart
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box



For further information on this product please get in touch with our team or visit the Danfoss website.
