1sda061968r1 t7s 800 pr332/p lsig in=800a 3 pole abb mccb

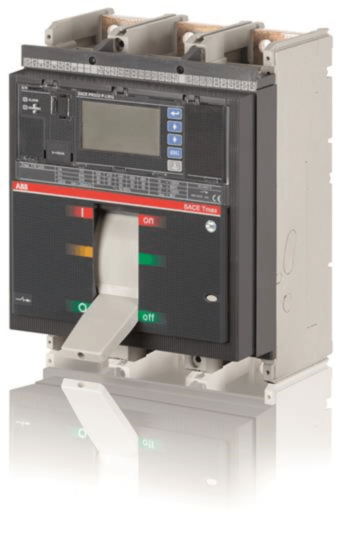

ABB molded case circuit breaker t7s 800 pr332/p lsig in=800a 3 pole f f rating (@400v) icu 50ka, ics 100%. c.breaker tmax t7s 800 fixed three-pole with front terminals and lever operating mechanism and solid-state release in ac pr332/p-lsig r 800

dimensions
product net width: 210 mm
product net height: 268 mm
product net depth: 154 mm
product net weight: 9.7 kg

additional information
number of poles: 3
power loss: at rated operating conditions per pole 19,3 w
product main type: sace tmax t
product name: molded case circuit breaker
product type: cb
rated current (in): main circuit 800 a
rated operational voltage: 690 v ac
rated service short-circuit breaking capacity (ics):
(220 v ac) 85 ka
(230 v ac) 85 ka
(380 v ac) 50 ka
(400 v ac) 50 ka
(415 v ac) 50 ka
(440 v ac) 50 ka
(500 v ac) 40 ka
(690 v ac) 30 ka
rated short-time withstand current (icw): for 1 s 20 a
rated ultimate short-circuit breaking capacity (icu):
(220 v ac) 8.5 ka
(230 v ac) 8.5 ka
(380 v ac) 50 ka
(400 v ac) 50 ka
(415 v ac) 50 ka
(440 v ac) 50 ka
(500 v ac) 40 ka
(690 v ac) 30 ka
rated uninterrupted current (iu): 800 a
release type: el
standards: iec 60947
sub-type: t7
suitable for: t7
suitable for product class: molded case circuit breakers
terminal connection type:
fixed circuit-breakers
front
version: f
