1sda068282r1 xt3s 250 ma 200 im=1200-2400 3 pole abb mccb

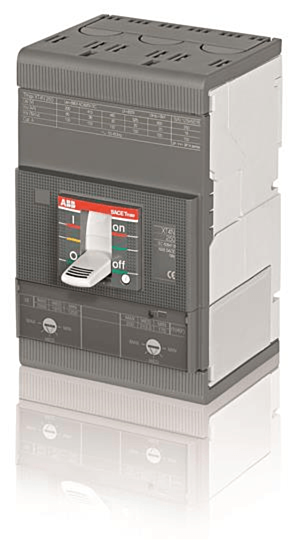

ABB molded case circuit breaker xt3s 250 ma 200 im=1200-2400 3 pole f f rating (@400v) icu 50ka, ics 100%. c.breaker tmax xt3s 250 fixed three-pole with front terminals and magnetic release ma iu 200 a i3=1200-2400 a

dimensions
product net width: 105 mm
product net height: 150 mm
product net depth: 70 mm
product net weight: 1.7 kg

additional information
circuit breaker type to be associated: motor protection
electrical durability:
120 cycles per hour
8000 cycle
mechanical durability:
nr. operations 240 cycles per hour
nr. operations 25000 cycle
number of poles: 3
opening time:
cb with sor 15 ms
cb with uvr 15 ms
power loss: at rated operating conditions per pole 13.2 w
product main type: sace tmax xt
product name: molded case circuit breaker
product type: cb
rated current (in): 200 a
rated frequency (f): 50 / 60 hz
rated voltage (ur): 690 v
rated impulse withstand voltage (uimp): 8 kv
rated insulation voltage (ui): 800 v
rated operational voltage:
690 v ac
500 v dc
rated service short-circuit breaking capacity (ics):
(220 v ac) 42,5 ka
(220 v ac) 42,5 ka
(380 v ac) 27 ka
(415 v ac) 27 ka
(440 v ac) 20 ka
(500 v ac) 15 ka
(690 v ac) 4 ka
rated ultimate short-circuit breaking capacity (icu):
(220 v ac) 85 ka
(230 v ac) 85 ka
(380 v ac) 50 ka
(415 v ac) 50 ka
(440 v ac) 40 ka
(500 v ac) 30 ka
(690 v ac) 8 ka
(250 v dc) 2 poles in series 50 ka
(500 v dc) 3 poles in series 50 ka
rated uninterrupted current (iu): 250 a
release type: m
standards: iec
sub-type: xt3
terminal connection type:
fixed circuit-breakers
front
version: f
