New Siemens S7-1500
New Siemens S7-1500 Product Range
Enhanced performance – enhanced usability: The new SIMATIC S7-1500 controller sets new standards in productivity with its many innovations. SIMATIC S7-1500 is perfectly integrated with the Totally Integrated Automation Portal (TIA Portal) for maximum efficiency in engineering.
PowerSIMATIC® S7-1500 offers advanced system performance and PROFINET as a standard onboard interface. It is the new standard for performance. Short system response times mean shortened machine cycle times – increasing productivity, and yielding faster return on investment.
+ Outstanding system performance for extremely short response times and highest control quality
+ Technology Integrated for perfect integration of drives through motion control functionalities and PROFIdrive
+ Security Integrated – integrated throughout for the optimal protection of investment
EfficiencySIMATIC S7-1500 is designed for optimal usability. Thanks to the many system innovations the controller can be installed, connected, and commissioned quickly and easily. Engineering, project planning, and the use of new functionalities are easier than ever before due to the seamless integration with the TIA Portal. The TIA Portal provides intuitive navigation, workflow, and look and feel via a shared layout and navigation concept as well as shared consistent data storage for PLCs, HMIs, and Drives
.+ Innovative design and easy handling for simple use and commissioning as well as safe operation
+ Integrated system diagnostics for full transparency of the plant status, automatically generated and consistently displayed
+ TIA Portal for maximum engineering efficiency and reduced project costs
POWER
PERFORMANCE
Fast, faster, SIMATIC S7-1500: The exceptional system performance allows for extremely fast response times for optimal control quality and highest system performance
.+ Processing Speed, SIMATIC S7-1500 provides even faster signal processing for shorter response times and higher productivity.
+ High-Speed backplane busThe new backplane bus with a high baud rate and efficient transmission protocol yields the crucial performance advantage for fast signal processing.

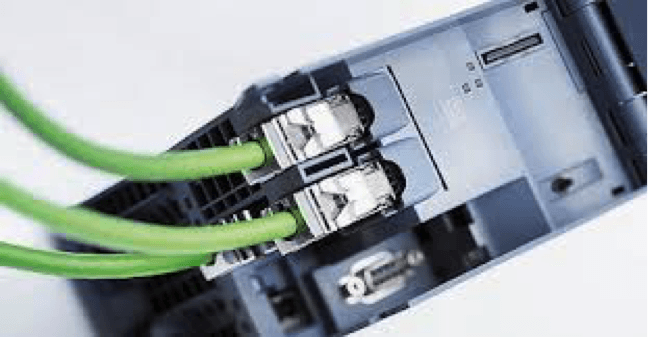

+ Communication, SIMATIC S7-1500 has multiple PROFINET ports and IP addresses: Two ports with identical IP addresses for field level communication and a third one with its own IP address for integration into the company network. PROFINET IO IRT allows defined response times and highly precise plant behavior
.+ Integrated Web serverCPU status requests are performed over a standard Internet browser, independent of location. Process variables displayed in graphics form and user-defined websites facilitate the acquisition of information.
Technology Integrated
SIMATIC S7-1500 makes it possible to integrate motion control into the PLC without additional modules. With PLCopen, the controller provides standardised components for the connection of drives that support PROFIdrive. SIMATIC S7-1500 supports comprehensive TRACE functionalities for all CPU variables for effective commissioning and fast optimisation of drives and controls.
+ TRACEAll CPUs support the TRACE functionality. User programs and motion applications can be diagnosed precisely and drives can be optimised.
+ Motion control functionalityAnalog drives and drives that support PROFIdrive can be connected. The motion control functionality supports speed and position axes.
+ PID controlIncreased quality of control due to easily configurable components for the automatic optimisation of the control parameters
Security Integrated
SIMATIC S7-1500 offers a security concept that includes authorisation levels, component protection and even communication integrity. Security Integrated protects your investment and contributes to high plant availability.
+ Know-how protection Algorithms can be protected from unauthorised access and modifications. Machines are protected from replication and your investments are protected.
+ Copy protectionPrograms can be configured to work only with a specific SIMATIC Memory Card, bound by serial number. This means that programs cannot be reproduced and will run only with the planned memory card.
+ Access protectionThe access protection functionality offers security against unauthorised project-planning changes. Separate rights can be allocated to various user groups through permission levels. Security CP 1543-1 enables enhanced access protection via an integrated firewall.
+ Manipulation protectionThe system protects the data being transmitted to the controller from unauthorised manipulation. The controller recognises the transmission of engineering data that has been changed or comes from a strange source.
Design and handling
SIMATIC S7-1500 offers an extensive new feature set that delivers maximum engineering efficiency and usability.
+ Built-in CPU display, easy access to detailed, plaintext information and diagnostics increase usability and provide complete plant transparency.
+ Standardised front connector, the standardised front connector ensures easy cable storage and time saving during wiring.
Integrated jumper linkIntegrated jumper links make it possible to establish potential groups in an easy and flexible manner.+ Integrated DIN rail Additional components such as automatic circuit breakers, relays, and others can be installed quickly and easily on a common rail with the PLC.
+ Adaptable cable storageDue to two pre-defined locking positions, the front door can be closed easily even when thick cables are used.
+ Pre-wiring positionInitial wiring and reconnection become faster and easier due to swing-wiring with locking feature.
+ Integrated shieldingThe proper shielding of analog signals ensures high quality signal recognition and resilience to external EMIs. Push-in type-wiring terminals enable easy, tool free installation.
+ ScalabilityFlexible assembly and upwards compatibility ensure the maximum cost-efficiency and investment security due to easy expandability. Up to 32 modules can be attached to a rack
Please call for a quotation
