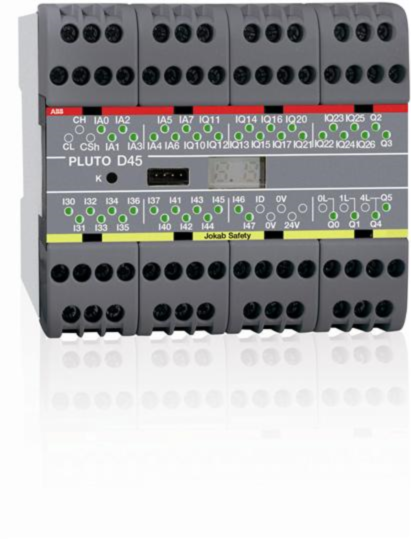

ABB pluto d45 abb safety controller

2TLA020070R6600, Safety PLC with Pluto safety bus and analogue inputs. Totally 45 I/O: 8 combined failsafe analogue and digital inputs + 16 failsafe inputs + 15 non-failsafe outputs/failsafe inputs + 4 individually failsafe relay outputs + 2 individually failsafe transistor outputs. Analogue input range 0-10V/4-20mA.

Dimensions
Product Net Depth: 120 mm
Product Net Height: 84 mm
Product Net Width: 90 mm
Product Net Weight: 0.650 kg

Technical
Diagnostic Coverage: High
Number of Inputs:
Failsafe 39
Analog (0 ... 10 V / 4 ... 20 mA) 8
Counter 4
Number of Outputs:
Failsafe (Relay) 4
Failsafe (Transistor) 2
Non-Failsafe 15
Performance Level (PL): Up to e
Protocol Type: MODBUS ASCII, Pluto Safety Bus, StatusBus
Safety Integrity Level (SIL): 4
Supply Voltage: 24 V DC
