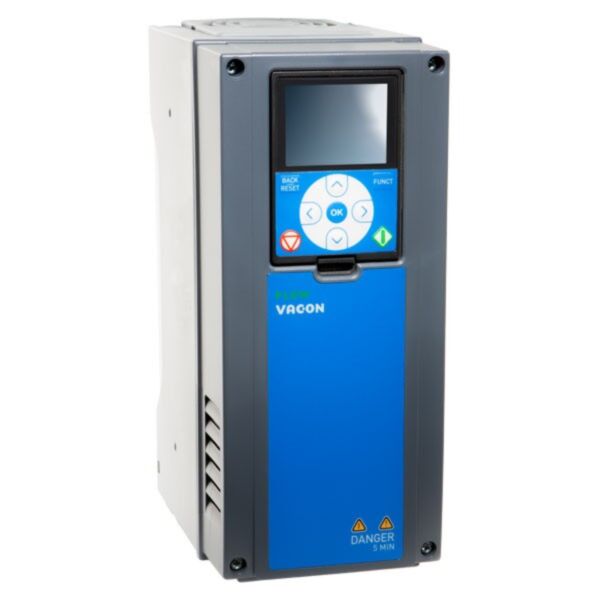

VACON 100 VACON0100-3L-0009-5 3.0Kw (CT) / 4.0Kw (VT) 8.0Amp (CT) / 9.6Amp (VT) 3 PHASE IN/OUT IP21

Name: VACON 100 VACON0100-3L-0009-5 3.0Kw (CT) / 4.0Kw (VT) 8.0Amp (CT) / 9.6Amp (VT) 3 PHASE IN/OUT IP21
Brand: Vacon
SKU: VACON0100-3L-0009-5
Price: 1001.56 GBP
Availability: InStock

MPN: 135N4512

Alt. SKU: 70-AB3L00095W04B221BM26-00049366

Special Price £1,201.87 £1,001.56 Regular Price £1,646.40

Details

VACON 100 VACON0100-3L-0009-5 3.0Kw (CT) / 4.0Kw (VT) 8.0Amp (CT) / 9.6Amp (VT) 3 PHASE IN/OUT IP21

Dedicated Fan and Pump Drive
Enclosure : IP21/NEMA1
Mounting : Din rail or screw fix
EMC Filter level : EMC 2 Class
Brake : No brake
Standard Warranty : 12 Months
Dimensions : 128x328x190mm
Weight: 6kg

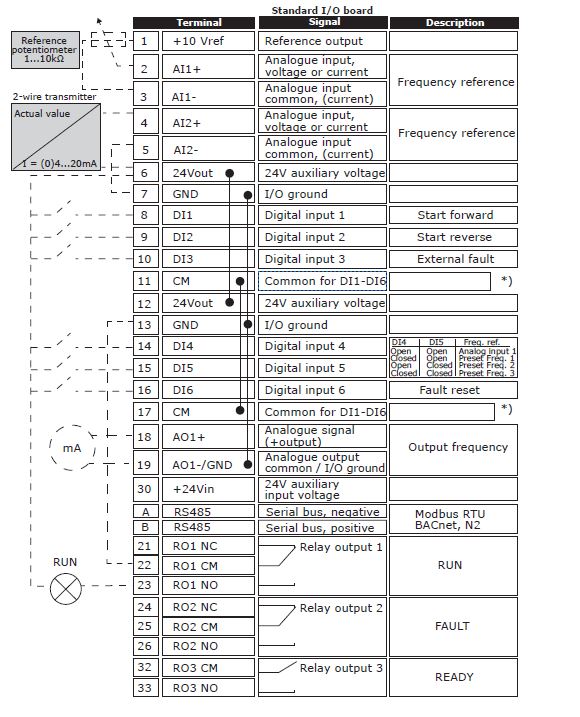

Inputs: 6 Digital, 2 Analog, 1 Thermistor
Outputs: 3 Relay, 1 Analog
Frame Size : MR04
Manufacture part numbers 135N4512 / VACON0100-3L-0009-5

More Information

More Information
Manufacturer Part Number	135N4512
Filter	Filter Included
IP Rating	IP21
KW Rating	3kW
phase	Three Phase In / Out
VSD Range	Vacon 100
Product Image	For Illustration Purposes Only
Manufacturer	Vacon
Alternative Product SKU	70-AB3L00095W04B221BM26-00049366
Product Lead Time	Please contact us for a delivery time
Links	Please click here for Vacon 100 Data Sheet
