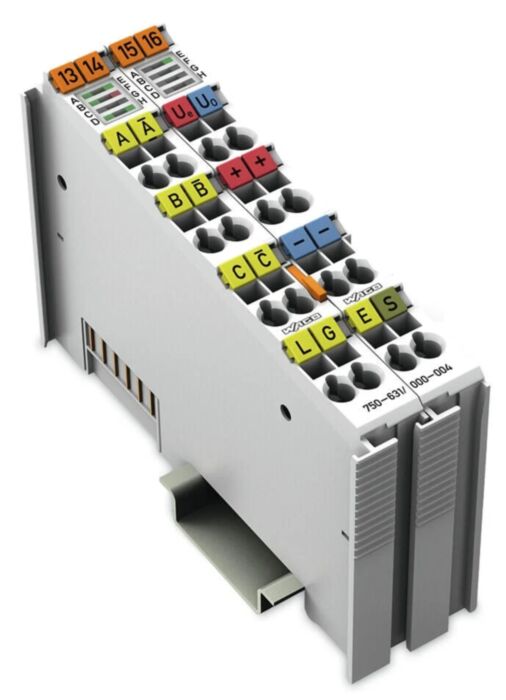

Wago 750-631/000-004 Inc. Encoder, Rs422

This module is an interface for the connection of any incremental encoder. A 16 bit counter with quadrature encoder interface as well as a 16 bit latch for the zero impulse can be read, set, or enabled. The count of the counter will be transmitted fast and interference-free over the fieldbus to the PC, PLC, or NC. A counter lock-out is possible using the “Gate” input. The power supply for the transmitter is derived internally from the power jumper contacts Ue/U0. The shield directly connects to the DIN-rail.
